FEELWORLD FW703 7 Inch IPS 3G SDI 4K HDMI DSLR Monitor Full HD 1920x1200 On Camera Field Monitor with Histogram for Stabilizer Cameras Rig
Bеѕt Dеаl FEELWORLD FW703 7 Inch IPS 3G SDI 4K HDMI DSLR Monitor Full HD 1920x1200 On Camera Field Monitor with Histogram for Stabilizer Cameras Rig A quick website review
So you can check out the other reviews at Amazon.com
only with $ 236.99
- 7" IPS screen 3G-SDI 4K HDMI camera field monitor,Full HD 1920x1200 high resolution,High brightness: 450cd/m2,High Contrast: 1200:1,Aspect Ratio 16:10,Viewing angle: 80°/80°(L/R) 80°/80°(U/D), wide 160° viewing angle makes it easy for multiple members of the crew to watch it at the same time
- Inputs:3G-SDI, HDMI,outputs:3G-SDI, HDMI, Stereo Headphone, Speaker (built-in),support 4K HDMI input and output

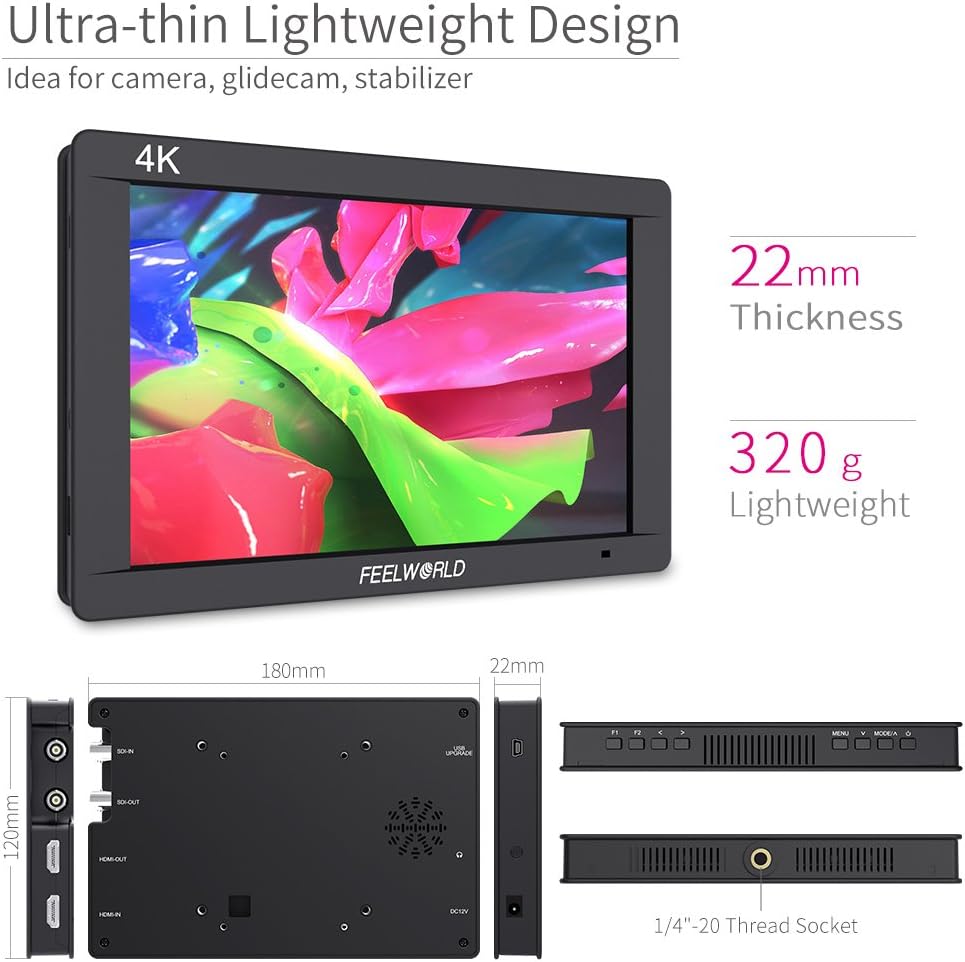

- Portable small size monitor,320g lightweight,ultra-thin design 0.87 inch thickness, compact and rugged for stabilizer,it's easy to hold in your hands
- Professional Rec.709 HD color standard, and color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video
- 【Package Include】1× FW703 Monitor, 1× Mini HDMI Cable, 1× Sunshade, 1× Hot Shoe Mount, 1× F970 Battery Plate, 1× Operation Manual【Note: battery not include】【One year warranty】We are the FEELWORLD Official Store, if you have any question, just feel free to contact us, we will do our best to help you solve problem.
Product Description
- FEELWORLD FW703 features a 7" Full HD screen with a resolution of 1920 x 1200 and up to 323 ppi density. This compact monitor includes 3G-SDI and 4K HDMI inputs and outputs.
- The IPS 160°wide-viewing angle allows the operator to have a clear, easy-to-see image as their position shifts, and features a brightness of 450 cd/m2 with a contrast ratio of 1200:1.
- The FW703 features professional color calibration, peaking, zoom, anamorphic mode, markers, and image flip. Ideal for film making, video shooting.
- Standard Accessories: 1× Mini HDMI Cable 1× Sunshade 1× Hot Shoe Mount 1× F970 Battery Plate 1× Operation Manual
 |
 |
 |
|---|---|---|
Professional Color Calibration Use Rec.709 color standard | Accurate Color ReproductionFEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals. | Embedded Audio MonitoringThe Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB. |
Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.
Display Spec.
Model: FW703
Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m²
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input
1 X BNC3G-SDI
1 X HDMIHDMI
Output
1 X BNC3G-SDI
1 X HDMIHDMI
Audio
AudioStereo Headphone, Speaker
SDI Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HDMI Input/ Output Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
Input Voltage: DC6.5～24V
Power Consumption: ≤9W
Working Temperature: -20°C~55°C
Storage Temperature: -30°C~65°C
Install Way: 1/4"-20 Thread Socket (bottom)
Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
Unit Size: 180Lx120Hx22D (mm)
Unit Weight: 320g/350g (With F970 Battery Plate)
Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input)
* Zoom (4X, 9X, 16X) (Nonsupport in 4K input)
* Aspect Ratio (Nonsupport in 4K input)
* Pixel to Pixel (Nonsupport in 4K input)
* Zoom All (Nonsupport in 4K input)
* U/D Zoom (Nonsupport in 4K input)
* L/R Zoom (Nonsupport in 4K input)
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs 4K HDMI | FEELWORLD LUT5 5.5 Inch 3000nits Ultra Bright DSLR Camera Field Monitor | FEELWORLD T7 7 inch FULL HD 1920X1200 Field Monitor Aluminum Housing | FEELWORLD LUT7S 7 Inch 2200nit Touchscreen Monitor with 3D Lut 4K-HDMI 3G-SDI | FEELWORLD LUT7S PRO 7 Inch Ultra Bright 2200nits HDR DSLR Camera Field Monitor | SEETEC P173-9HSD 17.3 Inch 1920x1080 Desktop Monitor Broadcast LCD Monitoring | |
| Screen Size | 5.5" IPS | 5.5" Touch Screen | 5.5" Touch Screen | 7" Touch Screen | 7" Touch Screen | 17.3" |
| Resolution | 1920x1152 pixels | 1920x1080 pixels | 1920x1080 pixels | 1920x1200 pixels | 1920x1200 pixels | 1920x1080 pixels |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:10 | 16:10 | 16:9 |
| Brightness | 500cd/m² | 3000cd/m² | 500cd/m² | 2200cd/m² (Light Sensor) | 2200cd/m² (Light Sensor) | 300cd/m² |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 1200:1 | 1200:1 | 700:1 |
| Signal Inputs | HDMI | HDMI | HDMI | 3G-SDI, 4K-HDMI, SD Card | HDMI, 3G-SDI, SD Card | 3G-SDI, HDMI, YPbPr, DVI, Video, Audio(L/R) |
| Outputs | HDMI, Stereo Headphone, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) | HDMI, DC OUT 8V, Stereo Headphone | HDMI, Stereo Headphone, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) | 3G-SDI, 4K-HDMI, DC OUT 8.4V, Stereo Headphone | HDMI, 3G-SDI, DC OUT 8V, Stereo Headphone | 3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Internal Speaker |
| Features | 3D LUT, Waveform, Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker Color, Check Field, Image Flip, Image Freeze, Zoom All | 3D LUT, HDR, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip | 3D LUT, HDR, All Waves display, Parada, Vector, Histogram, Focus assist, False color | 3D LUT, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip | 3D LUT, HDR, Waveform, Vectorscope, Histogram, Peaking Focus Assist, False Color, Exposure, Check Field, Zoom, Anamorphic Mode, Image Flip, Nine Grid, Pixel to Pixel, Center Marker, Safety Marker, Ratio Marker 190Lx126Hx27D (mm) | Peaking Focus Assist, Check Field, Camera Mode, Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom |
| Unit Size | 142Lx87.2Hx27.5D (mm) 175g | 142Lx86Hx28D(mm) | 148Lx103.5Hx41W (mm) | 190Lx126Hx27D (mm) | 190Lx126Hx27D (mm) | 426L×297H×35.1D mm (W/O Bracket) |
| Unit Weight | 175g | 270g | 370g | 460g | 450g | 2.75kg (W/O Bracket) / 3.30kg (W/ Bracket) |
